12 inch 200PSI W.P. TPU layflat hose,the special hose for shale gas fracturing water supply

Short Description:

12 inch 200PSI W.P. TPU layflat hose,the special hose for shale gas fracturing water supply.The hose consists of high tenacity polyester or aramid fiber as hose carcass,polyurethane as innerand outer tube layer which are extruded simultaneously.Abrasive resistance,acid and alkali resistance,oil resistance,corrosion resistance,aging resistance.


Product Detail

Product Profile

1.Construction:The hose consists of high tenacity polyester or aramid fiber as hose carcass,polyurethane as innerand outer tube layer which are extruded simultaneously.

2.Features:Abrasive resistance,acid and alkali resistance,oil resistance,corrosion resistance,aging resistance.In thecold environment,the hose will not become stiff,brittle and crack easily.

3.Application:The ideal large flow of long distance gas and liquid transportation,which widely used in petroleum.chemical,shipping,agriculture,water conservancy,mine rescue and firetighting.

4.Working temperature:-58℉-176℉(-40℃~80℃)

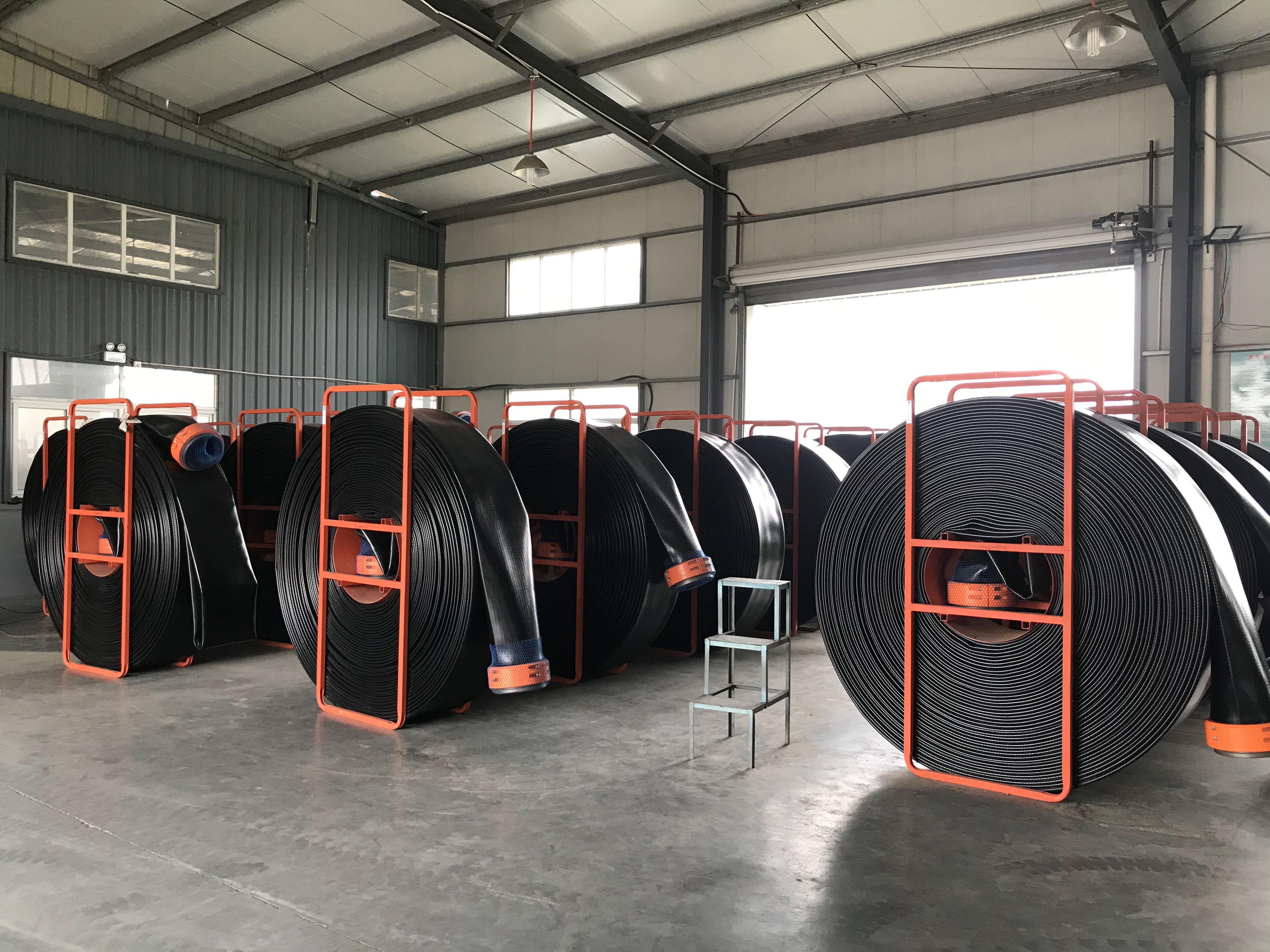

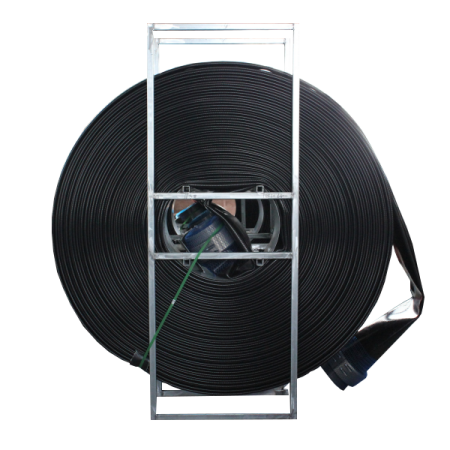

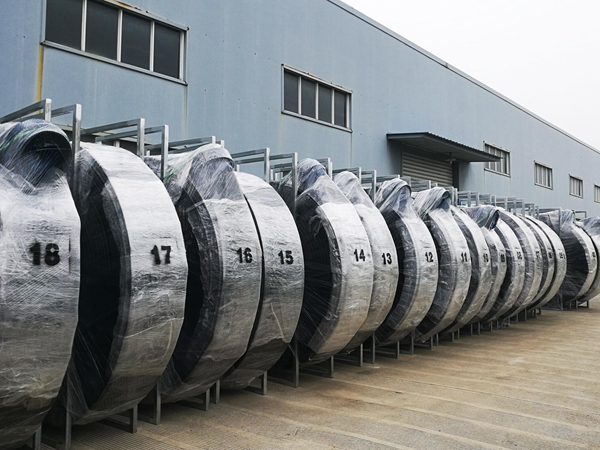

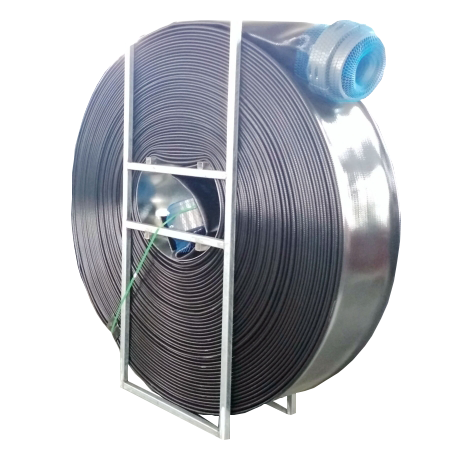

Product Detail Drawing

2020_05_29_08_34_IMG_0357
cof

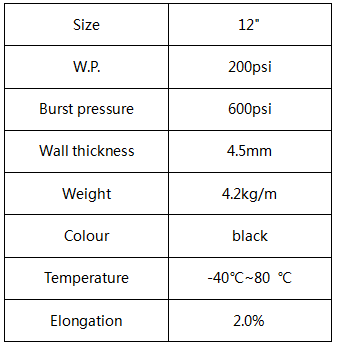

Product Data

QQ截图20211108161206

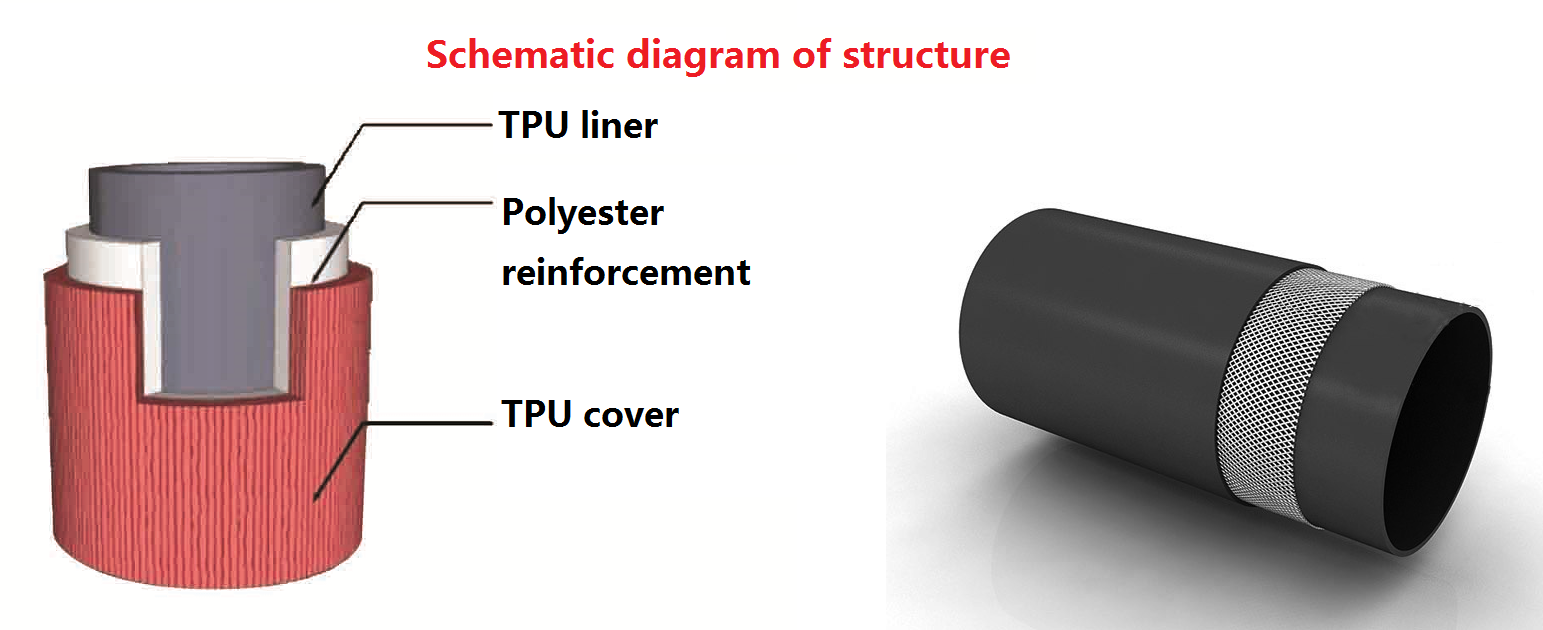

Structure Diagram
