14~16 inch heavy calibre TPU layflat hose , working pressure 100psi~200psi

Short Description:

In order to meet the market demand, our company has developed the large caliber polyurethane hose.Caliber from 14 inches to 16 inches, and 20 inch hose is under development.


Product Detail

Product Profile

1.Construction:The hose consists of high tenacity polyester or aramid fiber as hose carcass,polyurethane as innerand outer tube layer which are extruded simultaneously.

2.Features:Abrasive resistance,acid and alkali resistance,oil resistance,corrosion resistance,aging resistance.In thecold environment,the hose will not become stiff,brittle and crack easily.

3.Application:The ideal large flow of long distance gas and liquid transportation,which widely used in petroleum.chemical,shipping,agriculture,water conservancy,mine rescue and firetighting.

4.Working temperature:-58℉-176℉(-40℃~80℃)

Product Detail Drawing

2
14069702 (2)
14069703

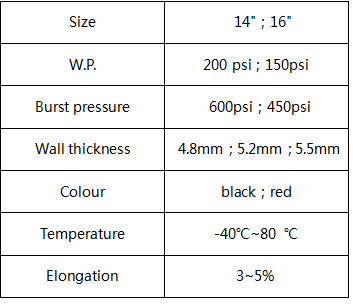

Product Data

2

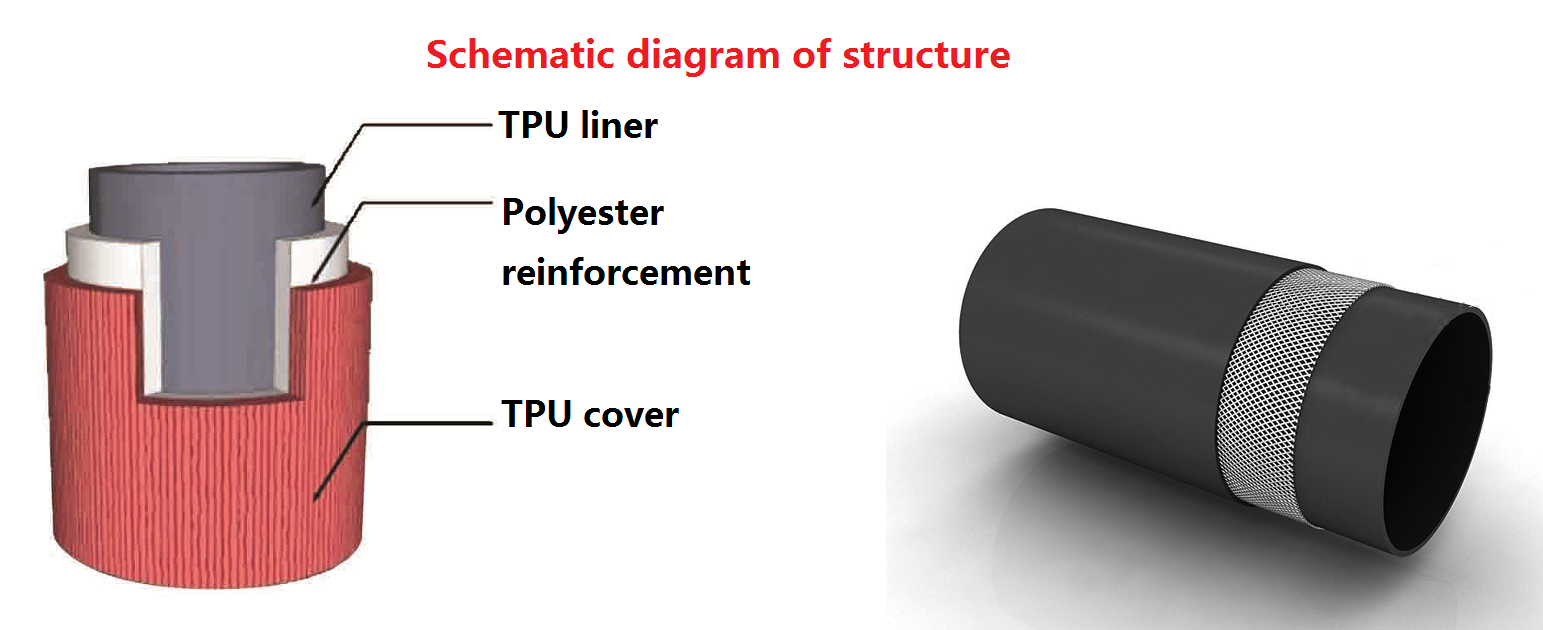

Structure Diagram
